High Sand Creek is a uniquely situated campsite on the edge of the quaint village of Stiffkey in Norfolk’s Area of Outstanding Natural Beauty. It is a family and dog friendly campsite surrounded by woodlands, mud creeks and beaches. High Sand Creek overlooks the East Anglian coastal saltmarshes which are rich with wildlife, flora, and fauna, all under the famous big skies of Norfolk.
The site needed to replace an ageing and inefficient traditional stored water heating system that had become tired and expensive in terms of fuel use and maintenance.
Local firm of plumbing & heating engineers Bruce Towers and Sons were brought in to upgrade and replace the old system. Bruce Towers & Sons are a family run plumbing and heating business based in Norfolk, established for almost 35 years.
“All our engineers are fully trained to the highest standard and qualified in the areas they work in, so customers are assured that our work is to the highest quality standard. We cover all types of plumbing and heating work including commercial and domestic projects from design to install and maintenance, so if it’s a tower block to a tap waste we can cover it,” says Luke Towers at the firm.
The new hot water system at High Sand Creek had to cater for 13 push button showers, 13 wash hand basins & seven kitchen sinks. This included the Shower Block, Disabled Shower/Washroom, Washing up area and exterior shower.

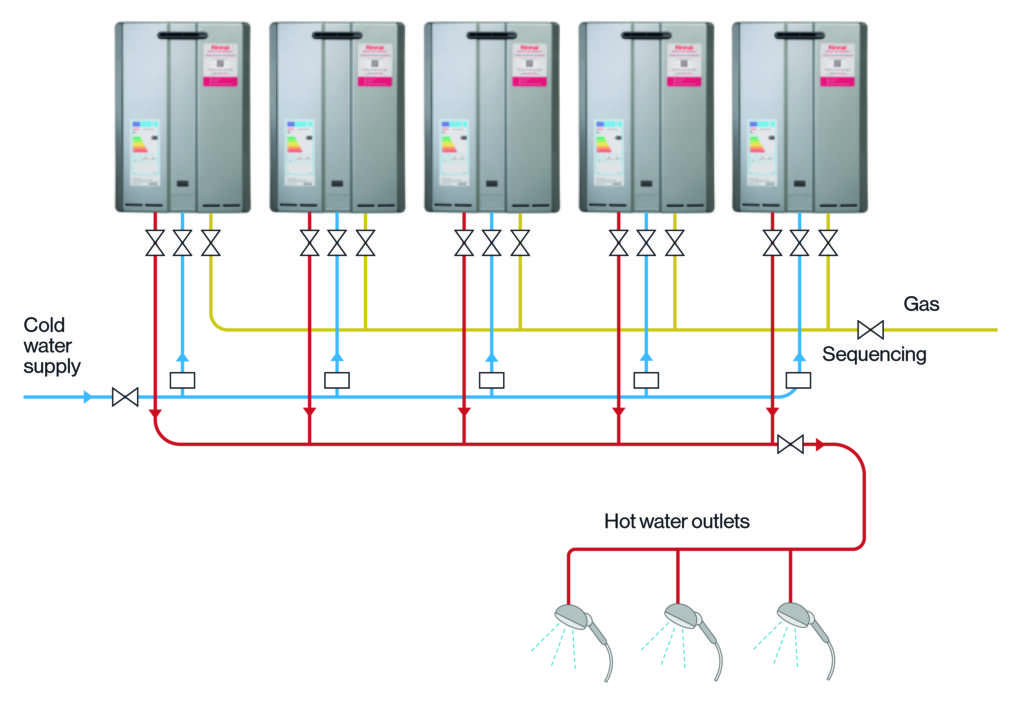

The solution was 4 x 1600 units from the Rinnai N Series. They were cascaded with a common header flue and the system also featured scale protection.
The new system from Rinnai has resulted in an energy reduction and gas saving due to higher efficiencies and because large amounts of stored hot water are not consuming vast amounts of expensive energy. With the Rinnai system it is simply a ‘Pay as You Go’.
As one site owner stated, “In terms of gas usage running costs compared to the old stored system, our fuel bills have virtually been halved since the Rinnai system went live, which is absolutely tremendous.”
The Rinnai Sensei N Series is the first ever continuous flow hot water heating unit manufactured with stainless steel heat exchangers to be available in the UK – this gives a greatly extended working life at optimum performance to each of the four models in the range. Added to this is the Sensei N Series market leading extended warranties.
There are four models are: the N1600i giving 954 litres per hour; the N1600e (external) also giving 954 litres per hour (at 50 degrees); the N1300i giving 775 litres per hour and the N1300e also giving 775 litres per hours of temperature controlled at 50 degrees. The two 1600s have load profiles of XXL and are water efficiency class A rated, while the 1300s are load profile XL and are also water efficiency class A rated.
Other features include:
- flue up to 30+ metres for concentric
- Turbo Fan
- Built-in controller as standard on both internal and external models
- Cascade Cable assembly allows up to 24 water heaters to be connected and function as one total and complete system Any number of N-series Rinnai water heaters can be manifolded together enabling the largest capacities on the market.
- Built in flue damper
- Air inlet filter
- Frost Protection – minus 15°C on the internal versions and minus 20 °C on the external versions
- New PCB Design
- Controller as standard – Lockable, set up of appliance, Temperature set up to 75°C
- Maintenance Monitor for engineers
All models in the range are also low-NOx and the Sensei N Series utilises Rinnai’s patented advanced burner technology with a 13-1 turn down ratio – the largest on the market – with extremely quiet operation. Integral controls on the units enable the water heater to achieve high efficiencies because of advanced burner control and high modulation ranges.
Rinnai manufactures over 2 million water heaters every year and as such is at the forefront of creating real advantages for users. Rinnai’s complete range of hot water heating units are available for next day delivery on orders placed before the previous mid-day.
